Florida Seating · BDNY 2026 · Booth 2647 · Javits Center, Nov 8–9

Divider wall samples

A 20 ft × 7.5 ft stretch-fabric wall for the shared booth line. Current direction: the beach-horizon gradient with a slight real-sand grain and three small off-white Florida Seating logos. Mockups for review, updated 12 Oct 2026.

Current direction: horizon gradient, slight sand, small off-white logos

Design C's gradient with the photographic sand grain at about half strength, logos cut to two-thirds (32 in wide) in a slightly off-white tone.

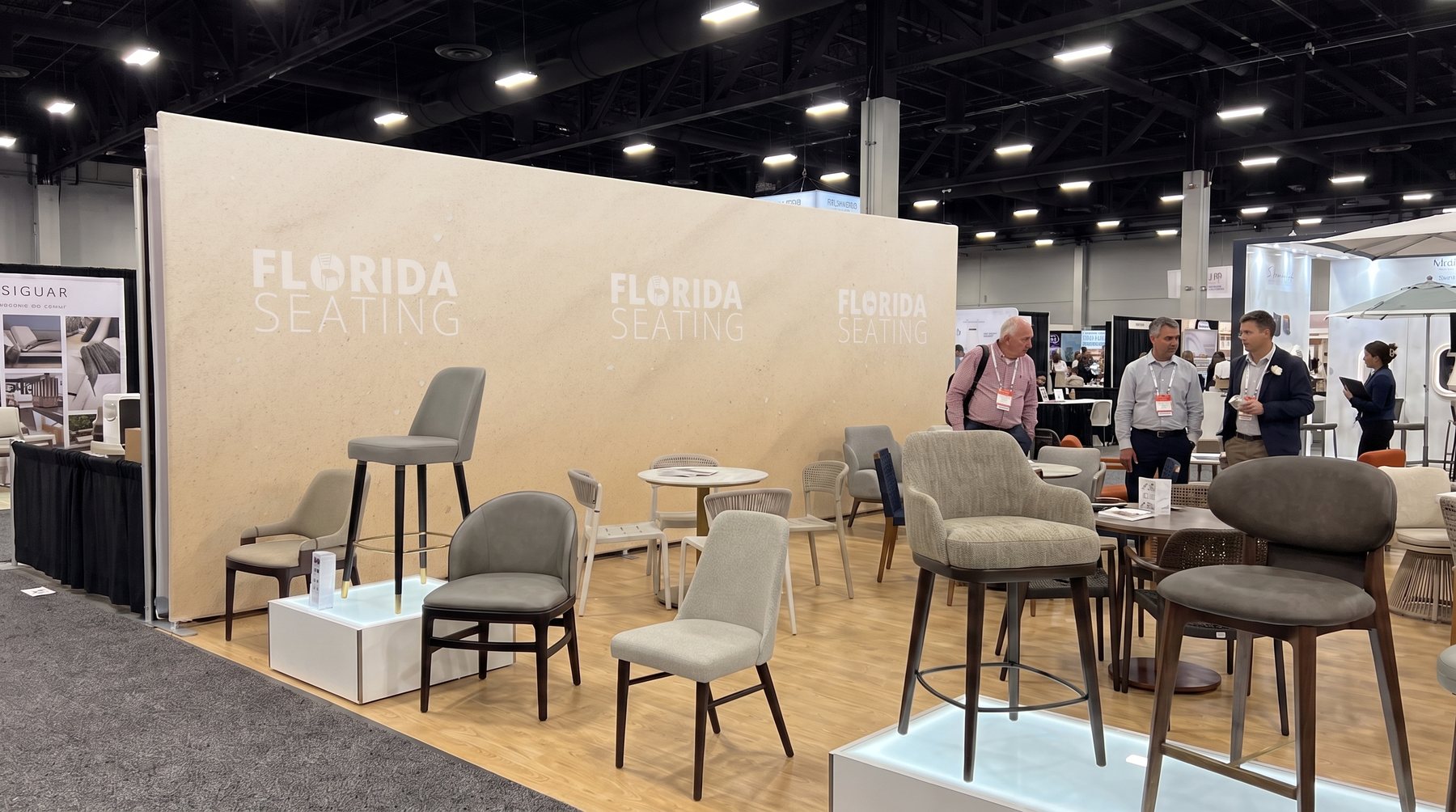

Second angle of the booth with the gradient sand wall and small off-white logos — Current5 · In the booth rendered from preview 2 with design E. Note: the render kept the logos a little larger than the flat file; the flat file is the spec.

Design E: horizon gradient with slight sand grain and three small off-white logos centred 60 inches above the floor — As requestedE · Horizon + slight sand #F2EADA → #DBC9A6 grain at 55 %, logos #F5F0E6 32 in wide, centred 60 in above the floor.

Design E3: the same gradient and grain with the logos lowered to 55 inches and a slightly whiter off-white — Suggested tweakE3 · Logos lowered 5 in same ground; logos #F7F3EA centred 55 in above the floor, where the gradient is a shade deeper so the off-white still reads. Band 49–61 in, clear of barstool backs.

Design E2: the same gradient with a stronger sand grain — **E2 · Grain a notch stronger** grain at 85 % if the slight version looks too flat on fabric.

Earlier in-booth previews

Rendered with Gemini 3 Pro Image from the HD Expo booth photo. Impressions only: the model scrambles background signage and proportions are approximate.

Second angle of the booth with the flat-colour sand-textured wall, strong grain — **3 · Sand texture, strong** design D2, no gradient.

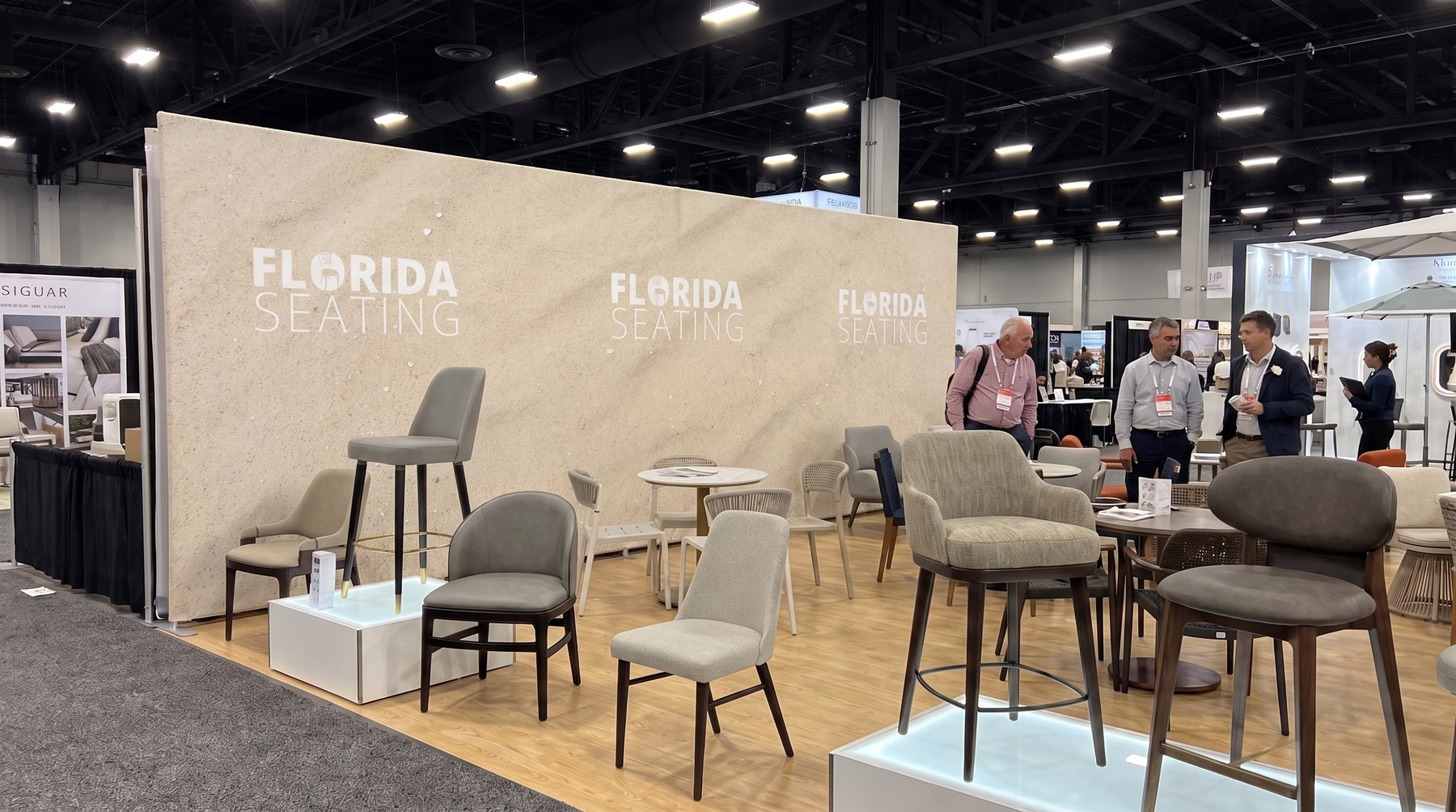

Second angle of the booth with the flat-colour sand-textured wall, soft grain — **4 · Sand texture, soft** design D, no gradient.

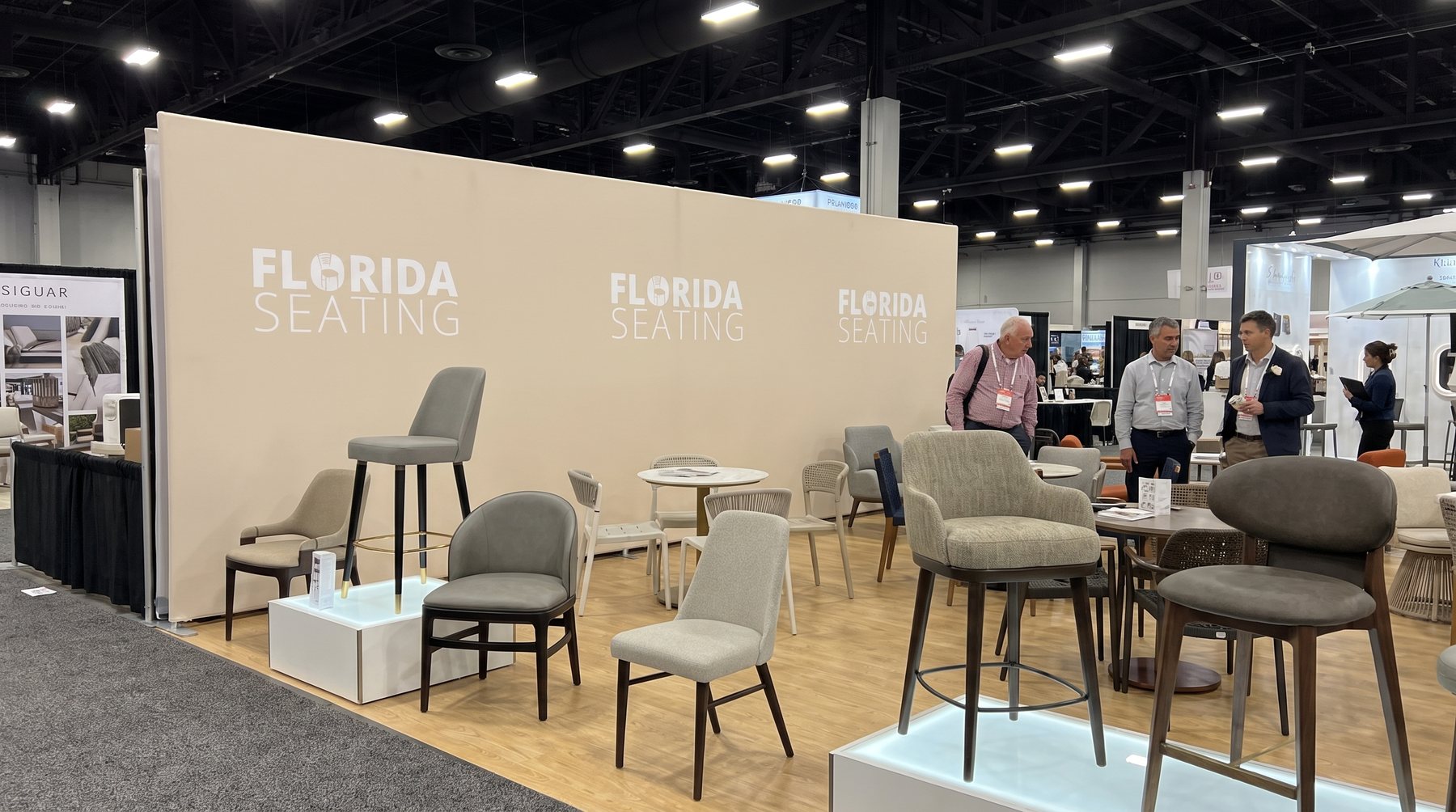

Second angle of the booth with a flat sand-coloured wall — **2 · Flat sand** the first version of this angle.

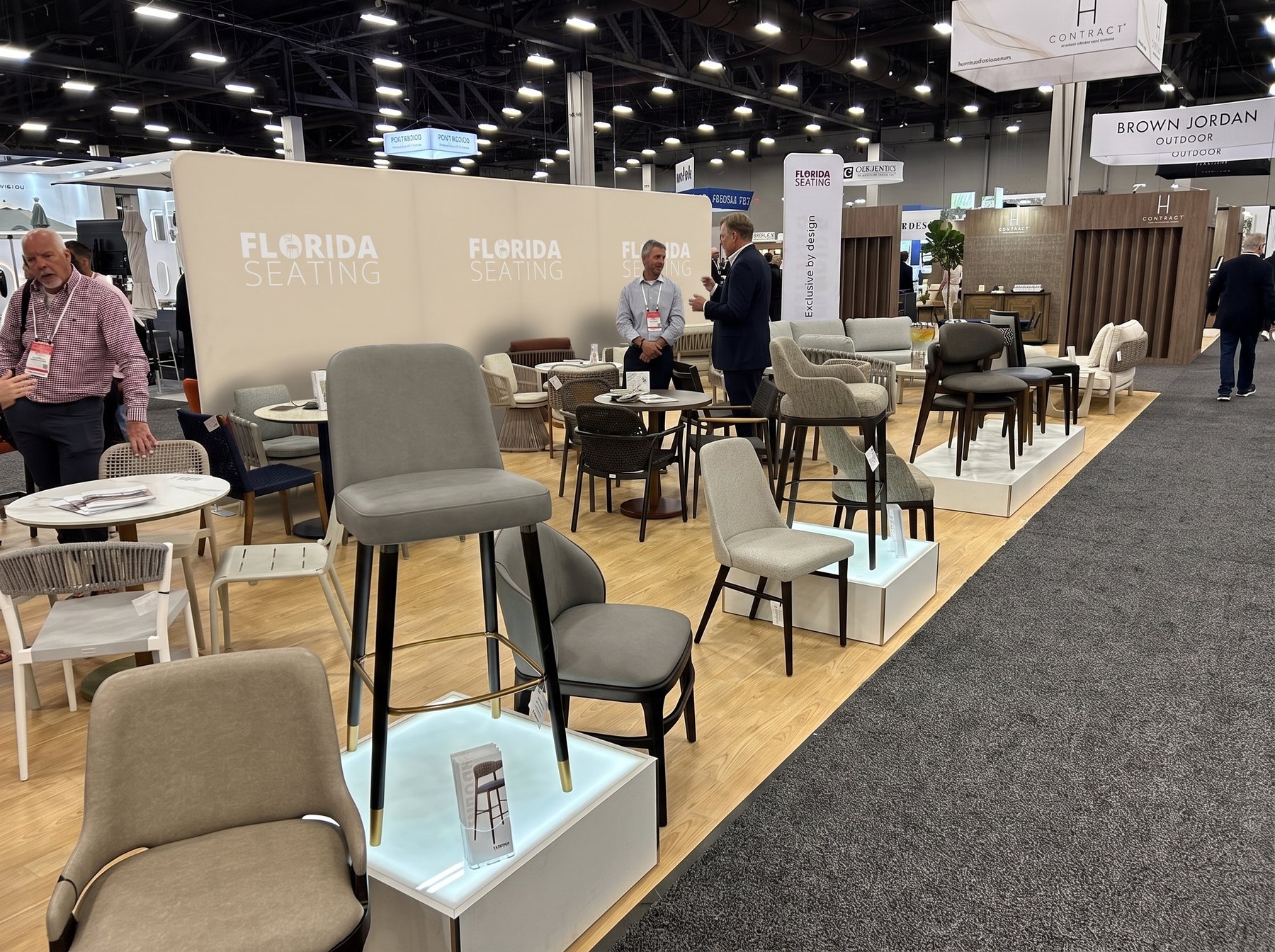

The HD Expo booth photo with a flat sand-coloured divider wall added along the back of the booth — **1 · Your booth photo, wall added** same camera, wall on the far edge of the wood floor.

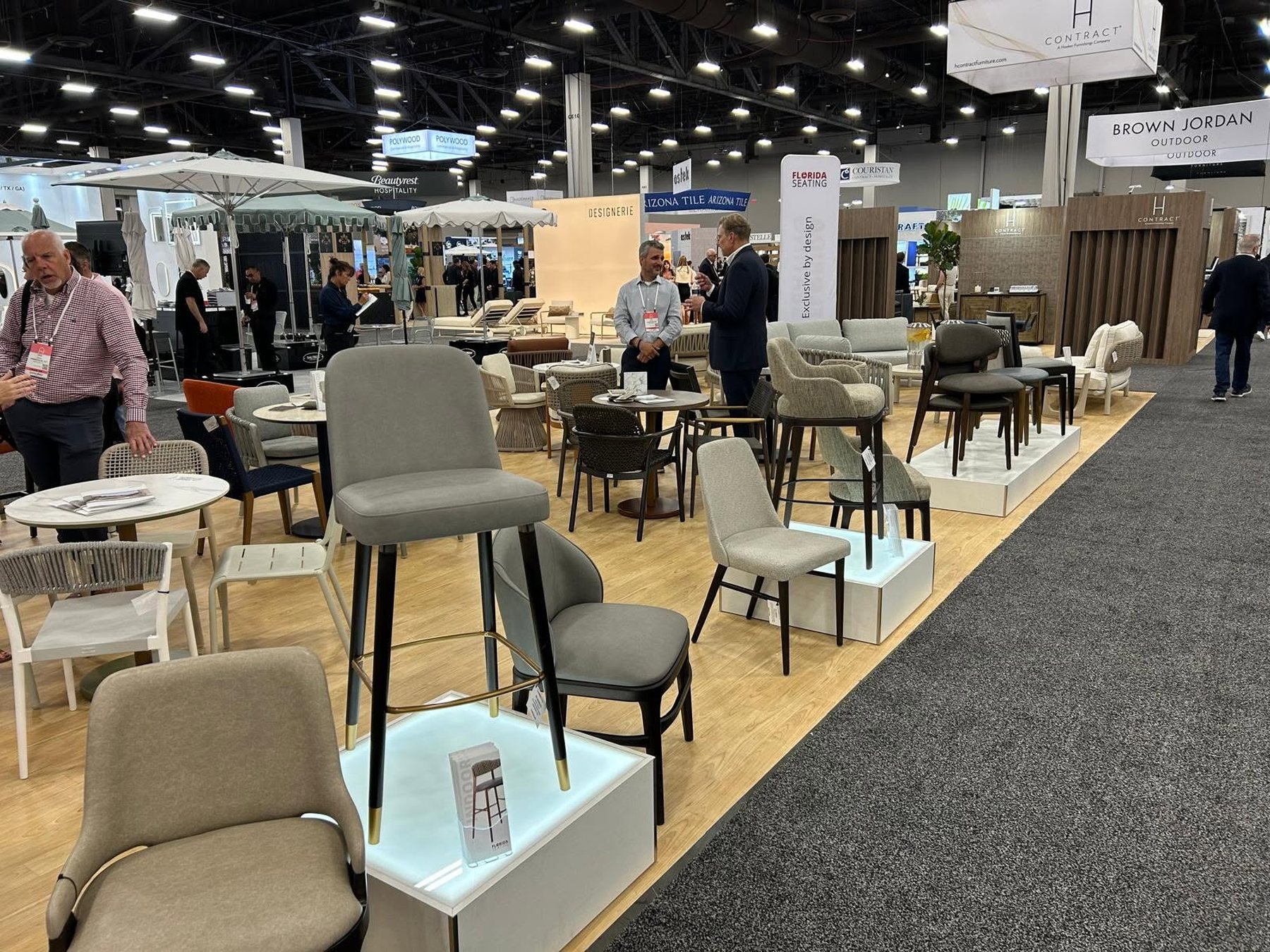

The original HD Expo booth photo used as the reference — **Reference** the original photo.

Earlier banner designs

Same 234 × 88.5 in proportion. Kept for comparison.

Design D2: photographic sand texture, strong grain, three white logos 44 inches wide — **D2 · Sand texture, strong** white logos 44 in.

Design D: photographic sand texture, soft grain, three white logos — **D · Sand texture, soft**

Design C: flat gradient from pale sand to deeper sand with three white logos 48 inches wide — **C · Beach horizon, flat** the gradient E is built on; white logos 48 in.

Design A: flat light sand with three white logos — **A · Sand, white knockout**

Design B: flat light sand with three logos one shade deeper — **B · Sand, tone on tone**

Placement and print spec (design E)

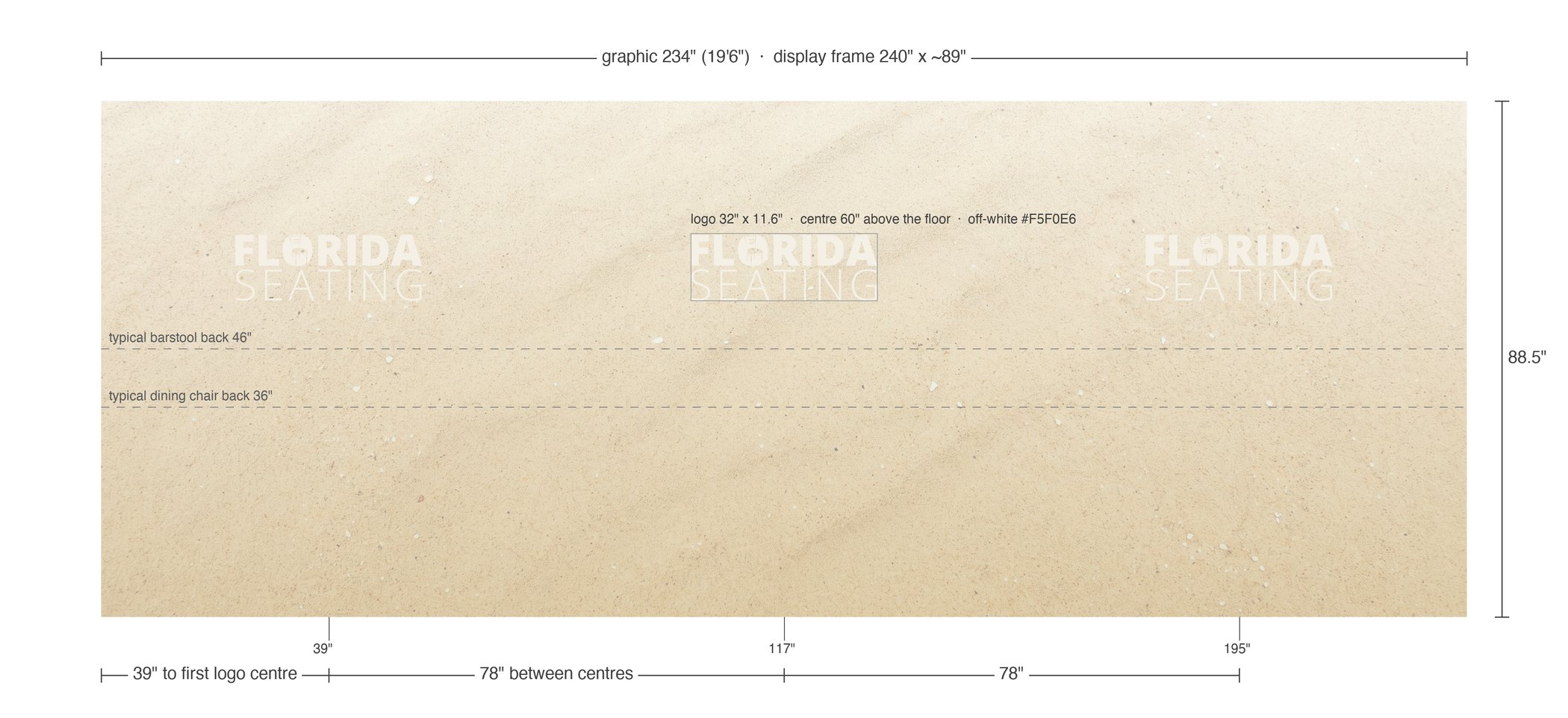

Dimensioned elevation of design E showing the three 32-inch logos, their centres and typical chair and barstool back heights — **Elevation** E as drawn (logo centres 60 in above the floor). E3 is identical with the centres at 55 in.

Hardware: EZ Tube 20 ft straight, display 240 × ~89 in, aluminium snap-tube frame, three flat feet, wheeled case
Graphic: 234 × 88.5 in, dye-sublimated stretch polyester pillowcase, zipper on top
Ground: Vertical gradient #F2EADA (top) → #DBC9A6 (bottom) with the photographic sand grain at 55 % (E2: 85 %)
Logos: 32 × 11.6 in, vector, off-white #F5F0E6 (E3: #F7F3EA); centres at 39, 117 and 195 in from the left; 60 in above the floor (E3: 55 in)
Clearance: Above typical dining chair backs (36 in) and barstool backs (46 in)
Outside face: Plain white or light grey, no branding: BDNY requires the neighbour-facing side to be finished and neutral
Opacity: Order the double-sided graphic with a blockout liner so the neighbour's lights do not show through
Setback: Stand the wall 3 in inside the shared booth line (BDNY wiggle-room rule)
Files: SVG masters bdny-banner-E/E2/E3-*.svg (sand ground embedded, logos vector) plus PNG previews in the Desktop folder and ~/.ops/artifacts/fls/bdny-banner/

Before ordering

The sand grain is 15 px/in at full size. For print, upscale the ground to 50–100 px/in (Topaz lane) before the final file; the logos stay vector either way.
Sand reads warmer on fabric than on screen. Ask the printer for a printed swatch or a hard proof of the ground before the full run.
Off-white on pale sand is deliberately quiet; check the swatch at 10 ft to confirm the logos still read, or take E3.
Send a rendering and the spec to Ambika Nainani at Emerald for booth approval; the stated deadline (Oct 10) has passed, so send it with the order.
Advance warehouse (Kearny, NJ) accepts freight Oct 5–28; graphics print in about two business days, so order this week.
